Spiral Wound Gasket

Sealing Products

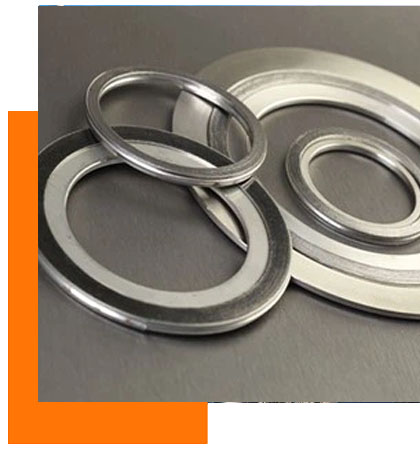

Spiral wound gasket is formed of V-shaped Metallic strip and soft non-metallic filler. Support rings, inside and Outside the spiral, improve the gasket’s handing, fitting and Versatility.

Depend on its excellent compression resilience, it is suitable for sealing spots where the alteration of temperature and pressure are frequent.

We are ready to provide spiral wound gaskets with the following types

Basic Type
Inner Ring Type – Size ½” – 24”
Outer Ring Type – Size ½” – 24”
Inner and Outer Ring Type – Size ½” – 36”

Spiral Wound Gaskets are suitable for a wide range of operating conditions and can be adapted to almost any application. The gaskets can seal fluid pressures up to 250 bar and temperature ranges from -200°C to over 450°C

All type Spesification Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.

Color cord as ASME B 16.20 on request.

Typical Applications

Pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc.

Petrochemical, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear power station and navigation, etc.
